Temper Aluminum Metal Plate 3105 5182 Aluminum Alloy 5005
| Place of Origin | made in china |
|---|---|
| Brand Name | mingtai |
| Certification | iso sgs |
| Model Number | 5000seriers |
| Minimum Order Quantity | 3 ton |
| Price | 2900usd per ton |
| Packaging Details | standard package or as requirment |
| Delivery Time | 5-15days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 3000ton peryear |
Product Details
| Geade | 5005 5454 5182 | Product Name | Temper Aluminum Metal Plate |
|---|---|---|---|
| Alloy Or Not | Alloy | Color | Silver |
| Temper | H14 H24 | Temper | O - H112,H18,H26,H24,H14 |
| High Light | Temper aluminum metal plate,aluminum metal plate 3105,5182 Aluminum Alloy 5005 |
||
Product Description
Temper Aluminium Sheet Aluminum Plate Newest Price Custom Alloy High Quality Metal Flat Plate Trump -aluminum Sheet Is Alloy ISO
Specifications
|
Thickness(mm)
|
aluminum sheet:0.15-6.0 aluminum plate:6.0-25.0
|
|
Width(mm)
|
20-2000
|
|
Standard
|
GB, JIS, DIN, ASTM
|
|
Surface treatment
|
Brushed, Mirror, Embossed, Sandblasted, etc
|
|
Temper
|
O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H114/H194, etc.
|
|
Type
|
coil/sheet/strips/plate
|
|
Package
|
Standard export package,such as wooden box or as required.
|
Product Introduction
Aluminum is widely used in electronics, packaging, construction, machinery, and so on. According to the chemical composition, it is divided into alloy aluminum and pure aluminum. According to the processing shape, it is divided into aluminum coil, aluminum plate, aluminum sheet, aluminum strip, aluminum tube, aluminum rod, aluminum profile and so on.
Aluminum Grade
|
1000 Series
|
Industrial Pure Aluminum(1050,1060 ,1070, 1100)
|
|
2000 Series
|
Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17)
|
|
3000 Series
|
Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105)
|
|
4000 Series
|
Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A)
|
|
5000 Series
|
Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182)
|
|
6000 Series
|
Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02)
|
|
7000 Series
|
Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52, 7A05)
|
Applications
| Alloy | Application field | |
| 1xxx | 1050 | Insulation, food industry, decoration, lamp, traffic signs etc. |
| 1060 | Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts etc | |
| 1070 | Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc | |
| 1100 | Cooker, building material, printing, heat exchanger, bottle cap etc | |
| 2xxx | 2A12 2024 | Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts, car parts and various other structural parts. |
| 3xxx | 3003 3004 3005 3105 |
Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc |
| 5xxx | 5052 | Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device, equipment and medical device panel etc. |
| 5005 | Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel. | |
| 5086 | Ship board, deck, bottom and edge panel etc. | |
| 5083 | Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board, automotive and aircraft panel, cooling device and automotive molding etc. | |
| 5182 | ||
| 5454 | ||
| 5754 | Tanker body, marine facilities, pressure container, transportation etc. | |
| 6xxx | 6061 6083 6082 |
Railway inside and outside parts, board and bed plate. Industry molding Highly stressed applications includes Roofing construction, transportation, and marine as well as mould. |
| 6063 | Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products. | |
| 7xxx | 7005 | Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers |
| 7050 | Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment | |
| 7075 | Aerospace industry, military industry, electronic etc | |

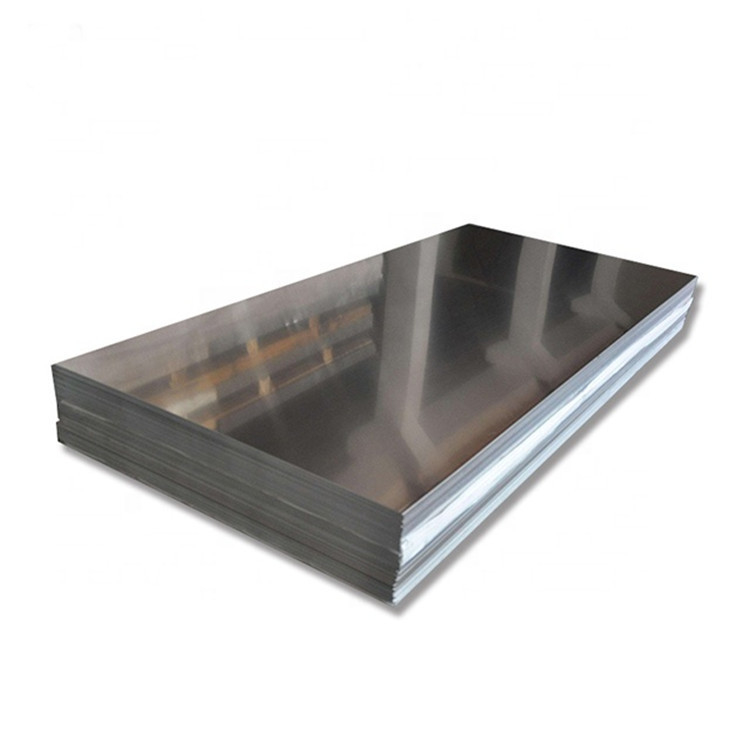

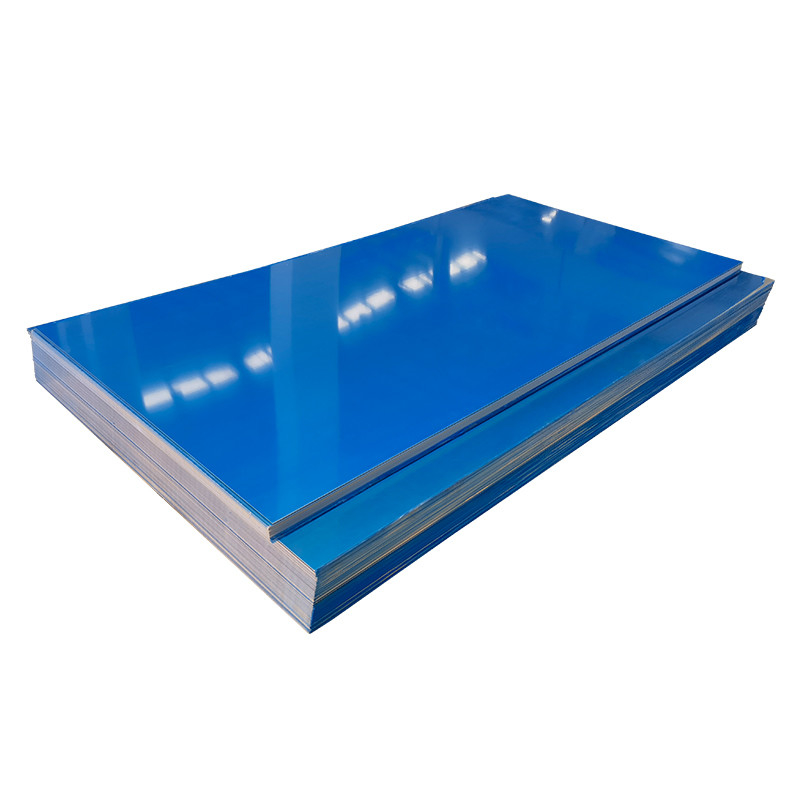

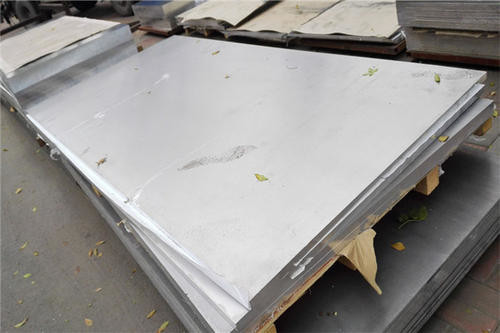

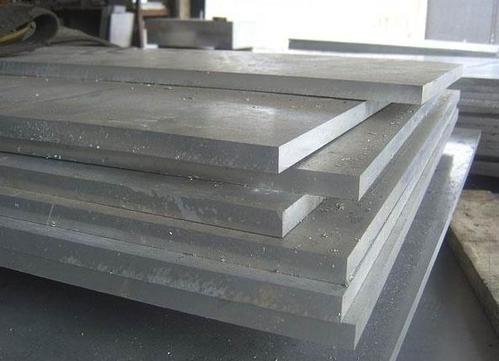

Product Diaplay
Company Information
Wuxi mingtai Steel Co., Ltd with good reputation, high-quality products, solid strength and lower price is famous in the country. Our company has rich experience in trading as we are engaged in domestic trading for more than ten years.
In 2012, we opened the market to the abroad. Our company is the collection of processing and operating. And we have a high supply ability.Our main products are stainless steel, galvanized steel, carbon steel and etc. These products apply to engineering, coal mine, textile, electric power, boiler, machinery, military industry and other fields.
FAQ
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4. How many coutries you already exported ?
A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q5. Can you provide sample ?
A5: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
